G32 series CNC mechanical leveler
Rated plate thickness：
0.4-1.2mm
Key words:
Basic Parameters
| Machine Model | G32-300 | G32-500 | G32-800 | G32-1300 |
| Roll Diameter | φ32mm | φ32mm | φ32mm | φ32mm |
| Can be determined by width | 300mm | 500mm | 800mm | 1300mm |
| Rated Plate thickness(Q235) | 0.4-1.2mm | 0.4-1.2mm | 0.4-1.2mm | 0.4-1.2mm |
| Max. Plate thicknes(Q235) | 2.4mm | 2.4mm | 2.4mm | 2.4mm |
| Leveling Accuracy | K | K | K | K |
≤2.4mm

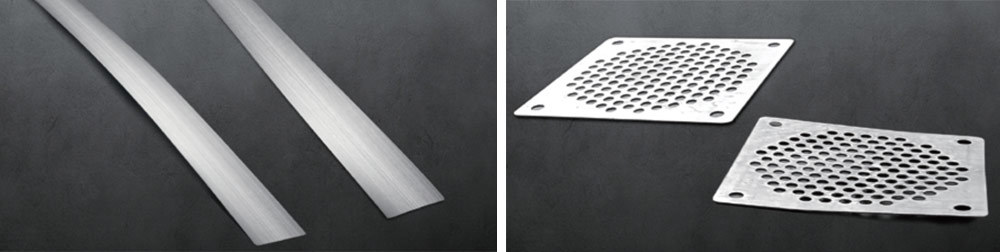

Leveling contrsat
Applicable objects
electronic lC industry, etc
Table for Leveled width Range
| Thickness/ Width | G32-300 | G32-500 | G32-800 | G32-1300 |
| 0.4-1.2 | 300 | 500 | 800 | 1300 |
| 1.6 | 200 | 330 | 530 | 660 |
| 2.0 | 150 | 250 | 400 | 500 |
| 2.4 | 120 | 200 | 290 | 400 |
Product Features
Solution
