G80 series CNC mechanical leveler
Rated plate thickness：
2-6mm
Key words:
Basic Parameters
| Machine Model | G80-500 | G80-1000 | G80-1300 | G80-1600 | G80-2100 |
| Roll Diameter | φ80mm | φ80mm | φ80mm | φ80mm | φ80mm |
| Can be determined by width | 500mm | 1000mm | 1300mm | 1600mm | 2100mm |
| Rated Plate thickness(Q235) | 2-6mm | 2-6mm | 2-6mm | 2-6mm | 2-6mm |
| Max. Plate thicknes(Q235) | 12mm | 12mm | 12mm | 12mm | 12mm |
| Leveling Accuracy | K | K | K | K | K |
≤12.0mm
Leveling contrsat

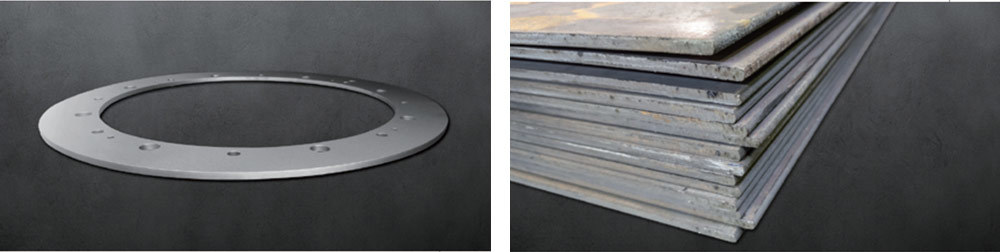

Applicable objects
sheet metal processingindustry, etc
Table for Leveled width Range
| Thickness/ Width | G80-500 | G80-1000 | G80-1300 | G80-1600 | G80-2100 |
| 2-6 | 500 | 1000 | 1300 | 1600 | 2100 |
| 8 | 400 | 800 | 1000 | 1280 | 1680 |
| 10 | 330 | 660 | 860 | 1060 | 1400 |
| 12 | 280 | 570 | 740 | 910 | 1200 |
The G80 series CNC mechanical leveler is an advanced and highly efficient leveling machine designed for modern industrial applications. This series offers precise metal leveling capabilities that meet the needs of various manufacturing sectors. Equipped with CNC control, the G80 series ensures high accuracy, consistency, and repeatability in every operation, making it ideal for processing steel sheets, aluminum plates, and other metal materials.
One of the key advantages of the G80 series CNC mechanical leveler is its robust mechanical structure. Built with high-strength steel and reinforced components, the machine guarantees long-term durability and stable performance. The mechanical leveling system allows for uniform flattening of metal sheets, reducing residual stress and improving material quality. The CNC control system provides automated adjustments, allowing operators to set precise parameters for different material thicknesses and lengths, which greatly improves productivity.
The G80 series is designed with user convenience in mind. The control panel features an intuitive interface that enables easy operation, even for operators with limited CNC experience. Real-time monitoring functions allow users to track leveling speed, material thickness, and other critical parameters. This ensures that every sheet processed meets strict quality standards and reduces the risk of human error.
Safety is another priority for the G80 series CNC mechanical leveler. The machine is equipped with protective covers and emergency stop mechanisms, ensuring safe operation in industrial environments. Maintenance is also straightforward, with easily accessible components and clear guidelines for routine inspections. This minimizes downtime and maximizes operational efficiency, allowing factories to maintain continuous production.
In addition to functionality, the G80 series is highly adaptable. It supports a wide range of metal thicknesses and widths, making it suitable for various industries such as automotive, construction, and shipbuilding. The machine can be integrated into existing production lines, providing a seamless solution for large-scale manufacturing operations. Its compact design saves floor space without compromising performance, making it an ideal choice for facilities with limited space.
The G80 series CNC mechanical leveler combines advanced technology, mechanical strength, and user-friendly design. By using this machine, manufacturers can achieve higher quality metal sheets, reduce waste, and increase overall production efficiency. It represents a reliable investment for companies seeking precision, durability, and operational excellence in metal processing.
